Features
CERTIFIED QUALITY
ProductsMaxxiLine cylinders are designed, individually manufactured, certified and tested in according to in total conformity with requirements of the UNI EN ISO 11118, UNI EN 13322-1 TPED as per Trasportable Pressure Equipment Directive 2010/35/EU . Each production stage is certified and periodically tested by International Inspection bodies.
made in italy
ProductsMaxxiLine products are completely studied, designed and made in italy. MaxxiLine's manufacturing team has been dealing in the field of gas cylinders, fire extinguisher tanks and trolley-tanks manufacturing for more than 50 years. Its Partners are recognized as industry pioneers since 1965, who have played a role in the birth and growth of this industry in Italy.

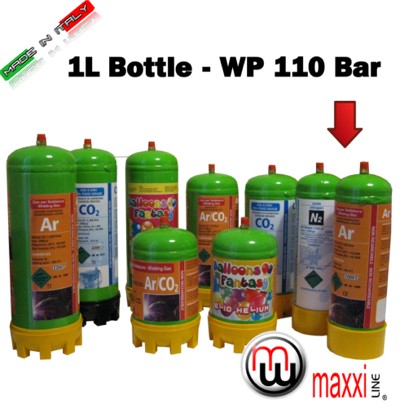

Non-refillable / Disposable 1 Litre cylinders UNI EN 11118:2015
MaxxiLine Non-refillable / Disposable 1 Litre cylinders are available with a variety of gas fills : 100% Nitrous Oxide E942 (N2O 580gr - 615gr), 100% Carbon Dioxide (CO2 600gr), 100% CO2 E290 600gr, 100% Argon, 100% Argon E938, 80% Argon/ 20% Co2 (Mix), 98% Argon/ 2% Oxygen (Mix), 100% Nitrogen, 100% Nitrogen E941, 95% Nitrogen/ 5% Hydrogen (Mix) and 100% Helium :
| Volume (V): | 1 Litre |
|---|---|
| Pressure to +20°C: | 110 bar (110 Litre) |
| Test Pressure (Ph): | 165 bar |
| Dimension (mm): | Diam. 80 x Length 285 (with plastic stand) |
| Weight/Tare (gr): | 1190 |
| Material: | Steel P355NB EN 10120 |
| Valve: | UNI EN ISO 11118:2015 |
| Packaging: | Carboard box of 6pcs |
| Non Refillable Gas Bottle: | UNI EN ISO 11118:2015 |
| UN.Nr./Class of gas: | 1070-1013-1006-1956-1046-1066 / Class 2.2 |
We are readily available to satisfy our customer's most demanding requests. Ask free samples for testing! Do you need a quick quote? Please contact our sales department to ask for more information.

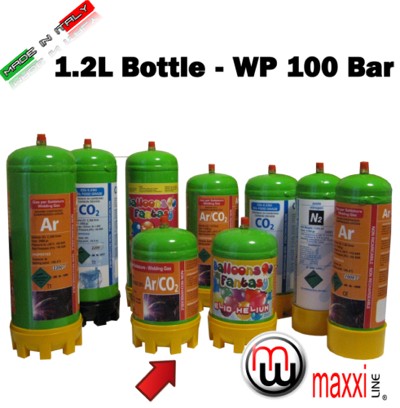

Non-refillable / Disposable 1.2 Litre cylinders UNI EN 11118:2015
MaxxiLine Non-refillable / Disposable 1.2 Litre cylinders are available with a variety of gas fills : 100% Nitrous Oxide E942 (N2O 580gr - 615gr), 100% Carbon Dioxide (CO2 600gr), 100% CO2 E290 600gr, 100% Argon, 100% Argon E938, 80% Argon/ 20% Co2 (Mix), 98% Argon/ 2% Oxygen (Mix), 100% Nitrogen, 100% Nitrogen E941, 95% Nitrogen/ 5% Hydrogen (Mix) and 100% Helium :
| Volume (V): | 1.2 Litre |
|---|---|
| Pressure to +20°C: | 100 bar (120 Litre) |
| Test Pressure (Ph): | 163 bar |
| Dimension (mm): | Diam. 102 x Length 195 (with plastic stand) |
| Weight/Tare (gr): | 1280 |
| Material: | Steel P355NB EN 10120 |
| Valve: | UNI EN 11118:2015 |
| Packaging: | Carboard box of 6pcs |
| Non Refillable Gas Bottle: | UNI EN 11118:2015 |
| UN.Nr./Class of gas: | 1070-1013-1006-1956-1046-1066 / Class 2.2 |
We are readily available to satisfy our customer's most demanding requests. Ask free samples for testing! Do you need a quick quote? Please contact our sales department to ask for more information.

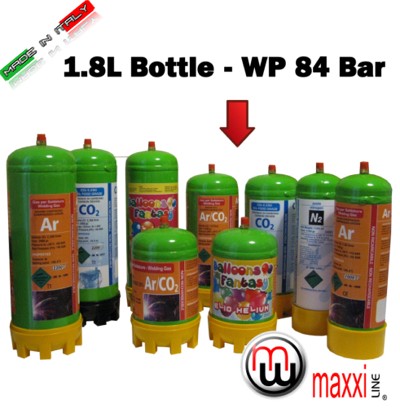

Non-refillable / Disposable 1.8 Litre cylinders UNI EN 11118:2015
MaxxiLine Non-refillable / Disposable 1.8 Litre cylinders are available with a variety of gas fills : 100% Nitrous Oxide E942 (N2O 800gr), 100% Carbon Dioxide (CO2 800gr), 100% CO2 E290 800gr, 100% Argon, 100% Argon E938, 80% Argon/ 20% Co2 (Mix), 98% Argon/ 2% Oxygen (Mix), 100% Nitrogen, 100% Nitrogen E941, 95% Nitrogen/ 5% Hydrogen (Mix) and 100% Helium :
| Volume (V): | 1.8 Litre |
|---|---|
| Pressure to +20°C: | 90 bar (160 Litre) |
| Test Pressure (Ph): | 163 bar |
| Dimension (mm): | Diam. 102 x Length 280 (with plastic stand) |
| Weight/Tare (gr): | 1800 |
| Material: | Steel P355NB EN 10120 |
| Valve: | UNI EN 11118:2015 |
| Packaging: | Carboard box of 6pcs |
| Non Refillable Gas Bottle: | UNI EN 11118:2015 |
| UN.Nr./Class of gas: | 1013-1006-1956-1046-1066 / Class 2.2 |
We are readily available to satisfy our customer's most demanding requests. Ask free samples for testing! Do you need a quick quote? Please contact our sales department to ask for more information.

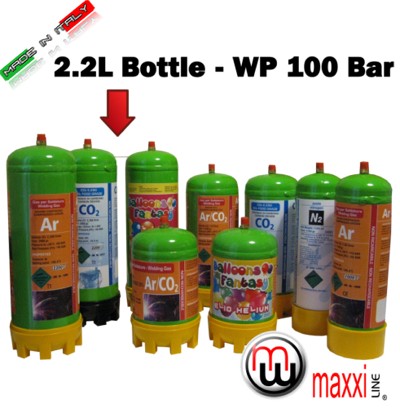

Non-refillable / Disposable 2.2 Litre cylinders UNI EN 11118:2015
MaxxiLine Non-refillable / Disposable 2.2 Litre cylinders are available with a variety of gas fills : 100% Nitrous Oxide E942 (N2O 1100gr), 100% Carbon Dioxide (CO2 1200gr), 100% CO2 E290 1200gr, 100% Argon, 100% Argon E938, 80% Argon/ 20% Co2 (Mix), 98% Argon/ 2% Oxygen (Mix), 100% Nitrogen, 100% Nitrogen E941, 95% Nitrogen/ 5% Hydrogen (Mix) and 100% Helium :
| Volume (V): | 2.2 Litre |
|---|---|
| Pressure to +20°C: | 100 bar (220 Litre) |
| Test Pressure (Ph): | 163 bar |
| Dimension (mm): | Diam. 102 x Length 325 (with plastic stand) |
| Weight/Tare (gr): | 2080 |
| Material: | Steel P355NB EN 10120 |
| Valve: | UNI EN 11118:2015 |
| Packaging: | Carboard box of 6pcs |
| Non Refillable Gas Bottle: | UNI EN 11118:2015 |
| UN.Nr./Class of gas: | 1013-1006-1956-1046-1066 / Class 2.2 |
We are readily available to satisfy our customer's most demanding requests. Ask free samples for testing! Do you need a quick quote? Please contact our sales department to ask for more information.

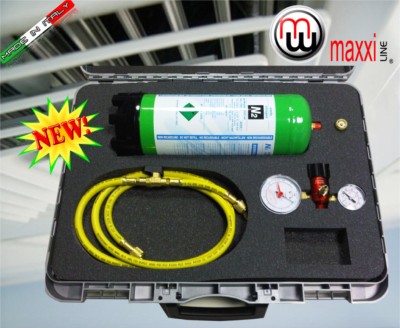

Nitrogen Purge Kit
MaxxiLine Nitrogen Purge Kit is the ideal kit for HVAC and Refrigeration installers and service technicians. This Kit provides all tools needed to pressure check the HVAC and Refrigeration lines, leak testing after brazing, flush drainage lines, blow clean components, and purge AC line sets . The kit is composed by the following items :
We are readily available to satisfy our customer's most demanding requests. Ask free samples for testing! Do you need a quick quote? Please contact our sales department to ask for more information.

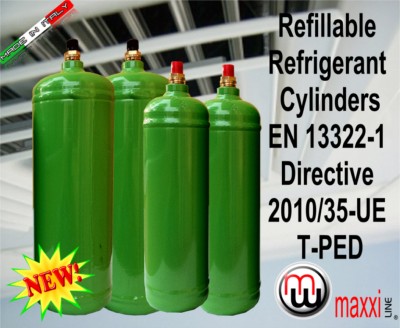

Refillable Cylinders for Refrigerant Gases UNI EN 13322-1 TPED
MaxxiLine Refillable cylinders for refrigerant gases are available in 1ltr and 2ltr, PH48 BAR, Valve 5/16" SAE, Valve 1/4" SAE for commercial, industrial, residential and automotive applications (HVAC&R).
| Volume (V): | 1 Litre / 2 Litre |
|---|---|
| Test Pressure (Ph): | 48 bar |
| Dimension (mm): | Diam. 80 x Length 266,5 (1L) / Diam. 102 x Lenght 306,5 (2L) |
| Weight/Tare (gr): | 1250 (1L) / 1800 (2L) |
| Material: | Steel P355NB EN 10120 |
| Valve: | UNI EN 10297 |
| Packaging: | Carboard box of 6pcs |
| Reusable & Refillable Bottle: | EN 13322-1 TPED |
| UN.Nr./Class: | 3163-3340-3337-3159 / Class 2.2 |
We are readily available to satisfy our customer's most demanding requests. Ask free samples for testing! Do you need a quick quote? Please contact our sales department to ask for more information.

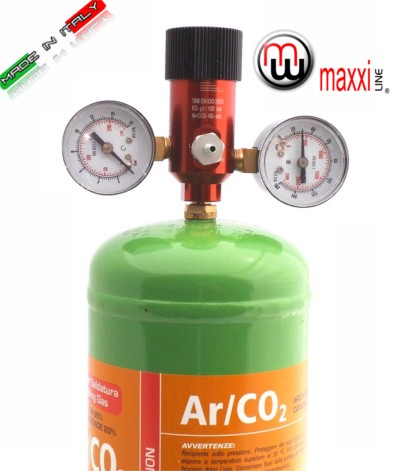

Dual Gauge Gas Bottle Regulators 0-5 Bar / 0-20 Bar (HVAC&R)
MaxxiLine Dual Gauge Gas Bottle Regulator are designed to connect small & the larger Argon, CO2, Argon/Co2, Argon/O2, Nitrogen disposable gas cylinders. Available in two models: 0-5 BAR - 0-45 BAR (HVAC&R)
| Outlet Pressure Range: | 0/5 bar - 0/20 bar |
|---|---|
| Maximum Inlet Pressure: | 150 bar |
| Max Flow Liter/min: | Various Outlet connections available on request |
| Safety Valve: | 10 bar / 25 bar |
| Outlet Connection: | 1/8" GAS |
| Gauge Connection: | Prearranged for HS and LS - 1/8" NPT |
| Material: | Alluminium |
| Compatible Gases: | Argon, CO2, Argon/Co2, Argon/O2, Nitrogen, Helium |
| Cylinder Connection: | M10x1 - On request M11x1 and M12x1 |
| In compliance with the Standard: | UNI EN ISO 2503:2010 - DM 174/04 |
We are readily available to satisfy our customer's most demanding requests. Ask free samples for testing! Do you need a quick quote? Please contact our sales department to ask for more information.
MaxxiLine Product Range
Why MaxxiLine?
- Made in Italy Product
- Quality Certified Product
- Total Safety Product
- Each bottle is individually manufactured, certified and tested in according to the latest Industry Regulations
- Private Label on request
- Retail Box on request
- OEM and Custom Services on request
- Savings on the shipping of full pallets. This gives you fewer pallets to handle, to store, to ship.
- Great Cost Savings in the individual shipping to the final users.

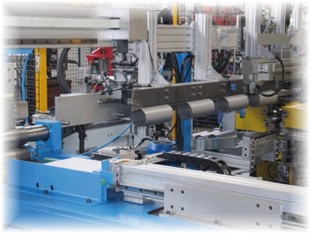

Latest Technology Equipments
